CDP1822C - High-Reliability CMOS 256-Word x 4-Bit LSI Static RAM

Product Overview

Intersil Corporation

Datasheet Details

Part number	CDP1822C
Manufacturer	Intersil Corporation
File Size	27.20 KB
Description	High-Reliability CMOS 256-Word x 4-Bit LSI Static RAM
Datasheet	CDP1822C Datasheet

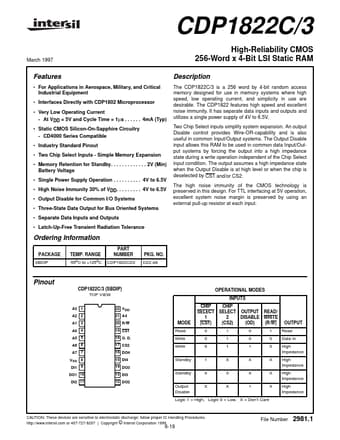

Additional preview pages of the CDP1822C datasheet.

Product details

Description

The CDP1822C/3 is a 256 word by 4-bit random access memory designed for use in memory systems where high speed, low operating current, and simplicity in use are desirable.

Features

high speed and excellent noise immunity. It has separate data inputs and outputs and utilizes a single power supply of 4V to 6.5V. Two Chip Select inputs simplify system expansion. An output Disable control provides Wire-OR-capability and is also useful in common Input/Output systems. The Output Disable input allows this RAM to be used in common data Input/Output systems by forcing the output into a high impedance state during a write operation independent of the Chip Select input condition. The.
