ZN427E8 Datasheet - GEC PLESSEY

ZN427E8 - MICROPROCESSOR COMPATIBLE 8-BIT SUCCESSIVE APPROXIMATION A-D CONVERTER

ZN427E8 / ZN427J8 MICROPROCESSOR COMPATIBLE 8-BIT SUCCESSIVE APPROXIMATION A-D CONVERTER DS3006 - 2.1 The ZN427 is an 8-bit successive approximation converter with three-state outputs to permit easy interfacing to a common data bus. The IC contains a voltage switching DAC, a fast comparator, successive approximation logic and a 2.56V precision bandgap reference, the use of which is pin optional to retain flexibility. An external fixed or varying reference may therefore be substituted, thus all.

ZN427E8 Features

* s Easy Interfacing to Microprocessor, or Operates as a 'Stand-Alone' Converter s Fast: 10 microseconds Conversion time Guaranteed s No Missing Codes over Operating Temperature Range s Data Outputs Three-State TTL Compatible, other Logic Inputs and Output TTL and CMOS Compatible s Choice of On-Chip o

ZN427E8-GECPLESSEY.pdf

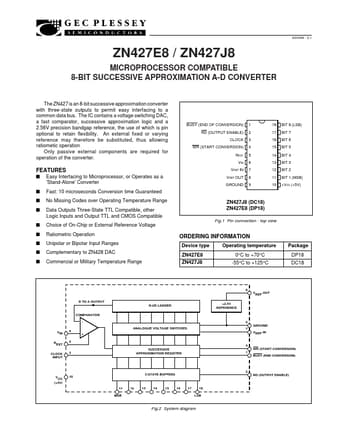

Preview of ZN427E8 PDF
ZN427E8 Datasheet Preview Page 2 ZN427E8 Datasheet Preview Page 3

Datasheet Details

Part number:

ZN427E8

Manufacturer:

GEC PLESSEY

File Size:

284.94 KB

Description:

Microprocessor compatible 8-bit successive approximation a-d converter.
