GS551 Class B Output Stage

GENNUM

Description

High Power, Class B Output Stage GS551 DATA SHEET .
The GS551 is a 10 pin, low voltage, class B amplifier which operates over a battery range of 1.

📥 Download Datasheet

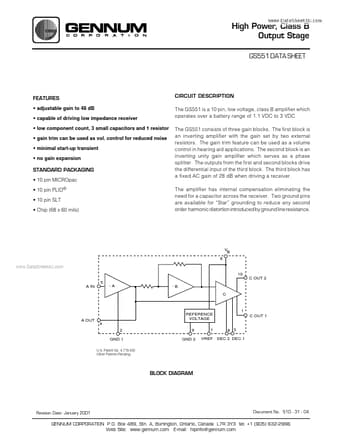

GS551 Datasheet Preview — Preview of GS551 PDF

Datasheet Specifications

Part number: GS551
Manufacturer: GENNUM
File Size: 124.83 KB
Datasheet: GS551_GENNUM.pdf
Description: Class B Output Stage

Features

* adjustable gain to 48 dB
* capable of driving low impedance receiver
* low component count, 3 small capacitors and 1 resistor
* gain trim can be used as vol. control for reduced noise
* minimal start-up transient
* no gain expansion STANDARD PACKAGIN

Applications

* The second block is an inverting unity gain amplifier which serves as a phase splitter. The outputs from the first and second blocks drive the differential input of the third block. The third block has a fixed AC gain of 28 dB when driving a receiver. The amplifier has internal compensation elimina
