GS5571

600mA Synchronous Step-Down Converter

GS5571 Features

* High Efficiency: Up to 96%. 1.5Mhz Constant Switching Frequency. 600mA Output Current at VIN=3.0V. Integrated Main switch and synchronous rectifier. No Schottky Diode Required. 2.5V to 5.5V Input Voltage Range. Output Volt

GS5571 General Description

GS5571 is a 1.5Mhz constant frequency, slope compensated current mode PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell lithium-Ion .

GS5571 Datasheet (509.09 KB)

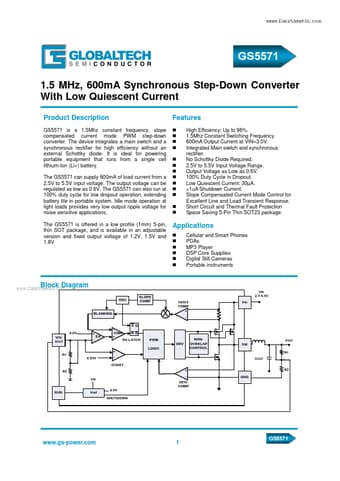

GS5571 Datasheet Preview — Preview of GS5571 PDF

Datasheet Details

Part number:

GS5571

Manufacturer:

GlobalTech

File Size:

509.09 KB

Description:

600ma synchronous step-down converter.
