2CLG10KV1.0A

Potting type HV subassembly

2CLG10KV1.0A Features

* Outline Drawings : mm Diffused Junction High Voltage Capability High Case Dielectric Strength High frequency High current Plastic Material has Underwriters Laboratory Flammability Classification 94V-O Mechanical Data Case: Epoxy potting Terminals: Through Hole for #3 Screwer HVR Lead Diameter 1.2

2CLG10KV1.0A Datasheet (274.08 KB)

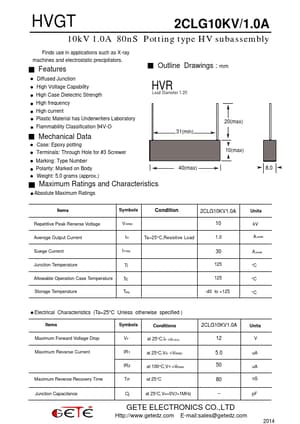

Preview of 2CLG10KV1.0A PDF

Datasheet Details

Part number:

2CLG10KV1.0A

Manufacturer:

GETE ELECTRONICS

File Size:

274.08 KB

Description:

Potting type hv subassembly.
HVGT 2CLG10KV/1.0A 10kV 1.0A 80nS Potting type HV subassembly Finds use in applications such as X-ray machines and electrostatic precipitators. Fea.
