2CLG3508

High Voltage Diodes

2CLG3508 Features

* IF AV VRRM High reliability 350mA 8kV Applications Rectification for high voltage power supply of magnetron in Micro wave oven and others Outline Dimensions and Mark Unit mm Code Lot No. Cathode Mark 7.5 0.5 1.2 0.05 22min 22 0.5 22min Type Code Cathode Mark . 2CLG3508 TG3508 . Limiti

2CLG3508 Datasheet (60.75 KB)

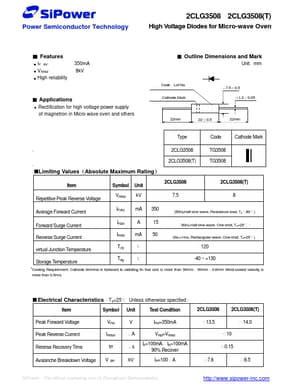

Preview of 2CLG3508 PDF

Datasheet Details

Part number:

2CLG3508

Manufacturer:

SiPower

File Size:

60.75 KB

Description:

High voltage diodes.
