Part number:
2CL3509
Manufacturer:
SiPower
File Size:
52.58 KB
Description:
High voltage diodes.

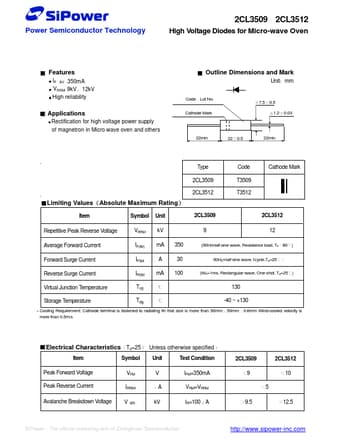

* IF AV 350mA VRRM 9kV 12kV High reliability Outline Dimensions and Mark Unit mm Code Lot No. Cathode Mark 7.5 0.5 1.2 0.03 Applications Rectification for high voltage power supply of magnetron in Micro wave oven and others 22min 22 0.5 22min . Type 2CL3509 Code T3509 T3512 Cathode Mark .
2CL3509
SiPower
52.58 KB
High voltage diodes.
