2CL3512H, 2CL3509H High Voltage Diodes

Description

2CL3509H、2CL3512H High Voltage Diodes for Micro-Wave Oven * .

📥 Download Datasheet

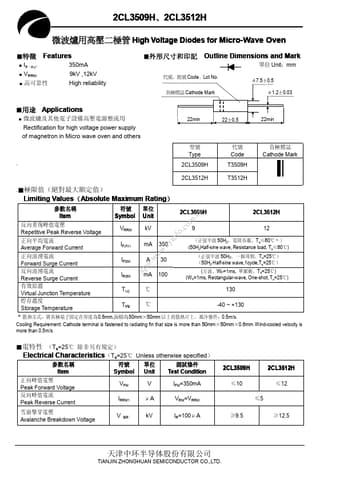

2CL3512H Datasheet Preview — This datasheet PDF includes multiple part numbers: 2CL3512H, 2CL3509H. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2CL3512H, 2CL3509H
Manufacturer: Tianjin zhonghuan semiconductor
File Size: 148.01 KB
Datasheet: 2CL3509H-Tianjinzhonghuansemiconductor.pdf
Description: High Voltage Diodes
Note: This datasheet PDF includes multiple part numbers: 2CL3512H, 2CL3509H.
Please refer to the document for exact specifications by model.

Features

* I
* F（AV）
* VRRM
* 350mA 9kV ,12kV High reliability
* Outline Dimensions and Mark Unit：mm 、 Code、Lot No. φ7.5±0.5 Cathode Mark φ1.2±0.03

Applications

* Rectification for high voltage power supply of magnetron in Micro wave oven and others . 22min 22±0.5 22min Type 2CL3509H Code T3509H Cathode Mark 2CL3512H T3512H .
* （） Limiting Values（Absolute Maximum Rating） gpd. sunwayinfo. com. cn Item Symbol Unit 2CL3509H 2CL3512H R
