2CL3520HR

High Voltage Silicon Diodes

2CL3520HR Features

* IF(AV) 350mA VRRM 20KV High reliability 2CL3520HRT (Terminal type) Dimensions in Millimeters Suffix “T” indicates as terminal type Applications Rectification for high voltage power supply of magnetron in microwave oven and others Mechanical Data Case: Molded plastic body Epoxy meets UL 94V-0

2CL3520HR General Description

only. Electrical and mechanical parameters listed in SiPower data sheets and specifications will vary dependent upon application and environmental conditions . SiPower is not liable for any damages occurred or resulting from any circuit, product or end-use application for which it’s products are use.

2CL3520HR Datasheet (69.66 KB)

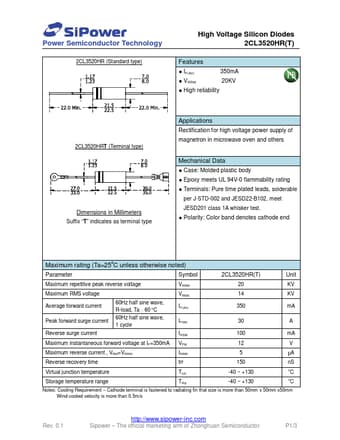

Preview of 2CL3520HR PDF

Datasheet Details

Part number:

2CL3520HR

Manufacturer:

SiPower

File Size:

69.66 KB

Description:

High voltage silicon diodes.
