2CL3509H High Voltage Diodes

2CL3509H Description

Power Semiconductor Technology 2CL3509H 2CL3512H High Voltage Diodes for Micro-Wave Oven .

2CL3509H Applications

* Rectification for high voltage power supply of magnetron in Micro wave oven and others Outline Dimensions and Mark Unit mm Code Lot No. 7.5 0.5 Cathode Mark 1.2 0.03 22min 22 0.5 22min . . Limiting Values Absolute Maximum Rating Item Symbol Unit Type 2CL3509H 2CL3512H 2CL3509H Code T3509H

📥 Download Datasheet

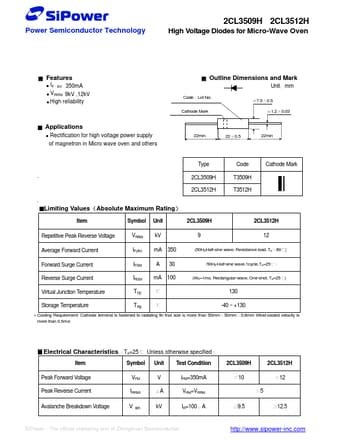

Preview of 2CL3509H PDF
