2CL04 - Chip Silicon Rectifier

Product Overview

CITC

📥 Download Datasheet

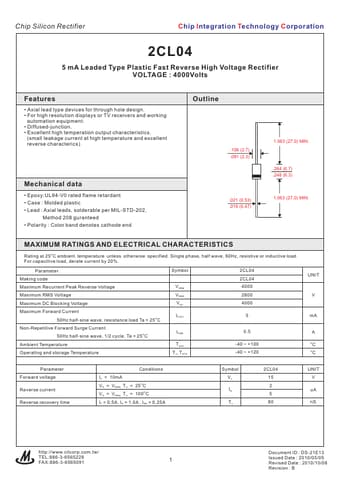

2CL04 Chip Silicon Rectifier by CITC - Datasheet Preview — Datasheet preview – 2CL04

Datasheet Details

Part number	2CL04
Manufacturer	CITC
File Size	33.60 KB
Description	Chip Silicon Rectifier
Datasheet	2CL04 Datasheet
Additional preview pages of the 2CL04 datasheet.

Product details

Features

Axial lead type devices for through hole design.
For high resolution displays or TV receivers and working automation equipment.
Diffused-junction.
Εxcellent high temperation output characteristics. (small leakage current at high temperature and excellent reverse characterics) Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic.
Lead : Axial leads, solderable per MIL-STD-202, Method 208 guranteed.
