2CL04SB - Chip Silicon Rectifier

Product Overview

CITC

📥 Download Datasheet

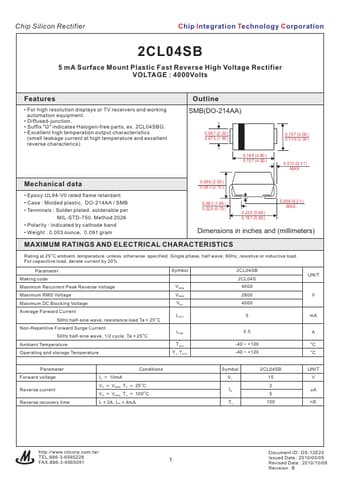

2CL04SB Chip Silicon Rectifier by CITC - Datasheet Preview — Datasheet preview – 2CL04SB

Datasheet Details

Part number	2CL04SB
Manufacturer	CITC
File Size	45.87 KB
Description	Chip Silicon Rectifier
Datasheet	2CL04SB Datasheet
Additional preview pages of the 2CL04SB datasheet.

Product details

Features

For high resolution displays or TV receivers and working automation equipment.
Diffused-junction.
Suffix "G" indicates Halogen-free parts, ex. 2CL04SΒG.
Εxcellent high temperation output characteristics. (small leakage current at high temperature and excellent reverse characterics) Outline SMB(DO-214AA) 0.08 7 (2.20 ) 0.07 5 (1.90 ) 0.18 9 (4.80 ) 0.15 7 (4.00 ) 0.15 7 (4.00 ) 0.13 0 (3.30 ) 0.012 (0.3 1) MAX. Mechanical data.
Epoxy:UL94-V0 r.
