2CL04S - Chip Silicon Rectifier

Product Overview

CITC

📥 Download Datasheet

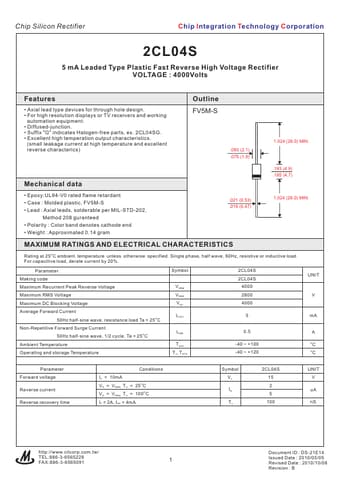

2CL04S Chip Silicon Rectifier by CITC - Datasheet Preview — Datasheet preview – 2CL04S

Datasheet Details

Part number	2CL04S
Manufacturer	CITC
File Size	44.12 KB
Description	Chip Silicon Rectifier
Datasheet	2CL04S Datasheet
Additional preview pages of the 2CL04S datasheet.

Product details

Features

Axial lead type devices for through hole design.
For high resolution displays or TV receivers and working automation equipment.
Diffused-junction.
Suffix "G" indicates Halogen-free parts, ex. 2CL04SG.
Εxcellent high temperation output characteristics. (small leakage current at high temperature and excellent reverse characterics) Outline FV5M-S .093 (2.1) .075 (1.9) 1.024 (26.0) MIN. Mechanical data .193 (4.9) .185 (4.7).
Epoxy:UL94.
