HV200F04 - 4.0kV 200mA HIGH VOLTAGE DIODE

HV200F04 Description

HVGT HV200F04 4.0kV 200mA HIGH VOLTAGE DIODE HV200F04 is high reliability resin molded type high voltage diode in small size package which is sealed.

HV200F04 Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power Maximum Ratings and Characteristics Absolute Maximum Ratings Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.6 25 min. 8.0 25 min. DO-308 Cathode Mark Type Mark HV200F04 Items Symbols Condition Repetitive

📥 Download Datasheet

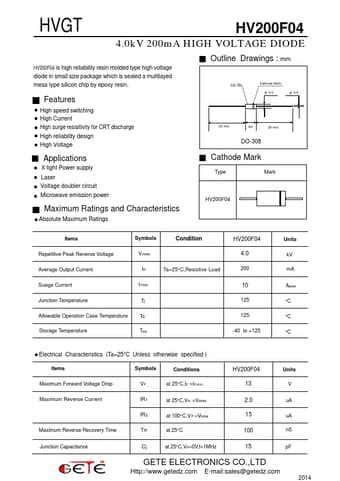

Preview of HV200F04 PDF

Datasheet Details

Part number
HV200F04
Manufacturer
GETE ELECTRONICS
File Size
60.69 KB
Datasheet
HV200F04-GETEELECTRONICS.pdf
Description
4.0kV 200mA HIGH VOLTAGE DIODE
