HV20320

8-Channel High Voltage Analog Switch

HV20320 Features

* HVCMOS® technology for high performance

* Very low quiescent power dissipation (-10µA)

* Output on-resistance typically 22Ω

* Low parasitic capacitances

* DC to 50MHz small signal frequency response

* -60dB typical output off isolation at 5.0MHz

HV20320 General Description

This device is a low charge injection, 8-channel, high-voltage analog switch integrated circuit (IC) intended for use in applications requiring high voltage switching controlled by low voltage control signals, such as ultrasound imaging and printers. Input data is shifted into an 8-bit shift registe.

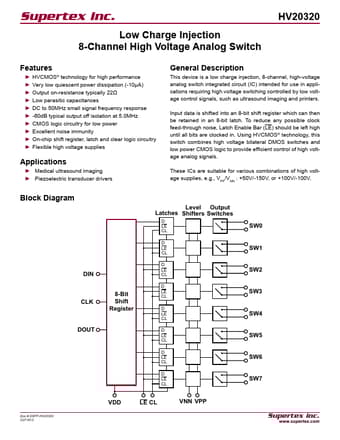

HV20320 Datasheet (641.30 KB)

Preview of HV20320 PDF

Datasheet Details

Part number:

HV20320

Manufacturer:

Supertex

File Size:

641.30 KB

Description:

8-channel high voltage analog switch.
