HV2201 - High Voltage Analog Switch

Product Overview

Supertex

📥 Download Datasheet

HV2201 High Voltage Analog Switch by Supertex - Datasheet Preview — Datasheet preview – HV2201

Datasheet Details

Part number	HV2201
Manufacturer	Supertex
File Size	453.21 KB
Description	High Voltage Analog Switch
Datasheet	HV2201 Datasheet

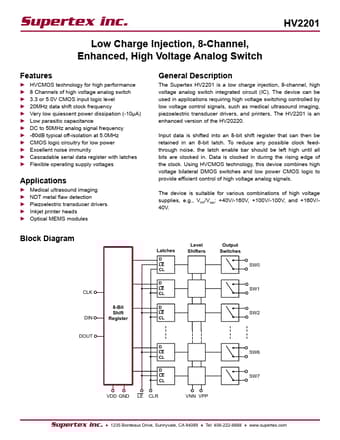

Additional preview pages of the HV2201 datasheet.

Product details

Description

The Supertex HV2201 is a low charge injection, 8-channel, high voltage analog switch integrated circuit (IC).

Features

HVCMOS technology for high performance.
8 Channels of high voltage analog switch.
3.3 or 5.0V CMOS input logic level.
20MHz data shift clock frequency.
Very low quiescent power dissipation (-10µA).
Low parasitic capacitance.
DC to 50MHz analog signal frequency.
-60dB typical off-isolation at 5.0MHz.
CMOS logic circuitry for low power.
Excellent noise immunity.
Cascadable serial data reg.
