HV2203 - 8-Channel High Voltage Analog Switch

HV2203 Description

HV2203 Low Charge Injection, 8-Channel High Voltage Analog Switch .
The Supertex HV2203 is a low charge injection 8-channel high voltage analog switch integrated circuit (IC) intended for use in applications requiring.

HV2203 Features

* HVCMOS technology for high performance
* 3.3V or 5.0V CMOS input logic level
* 20MHz data shift clock frequency
* Very low quiescent power dissipation - 10µA
* Low parasitic capacitance
* DC to 10MHz analog signal frequency www. DataSheet4U. com
* -60dB typical off-isolat

HV2203 Applications

* requiring high voltage switching controlled by low voltage signals, such as medical ultrasound imaging, piezoelectric transducer driver, and printers. Data is input into an 8-bit shift register that can then be retained in an 8-bit latch. To reduce any possible clock feed-through noise, the latch en

📥 Download Datasheet

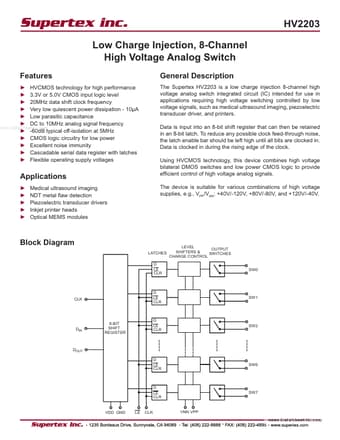

Preview of HV2203 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HV2203
Manufacturer
Supertex
File Size
873.57 KB
Datasheet
HV2203_Supertex.pdf
Description
8-Channel High Voltage Analog Switch
