HV2221

Analog Switch

HV2221 Features

* Low on-resistance, 14Ω max.

* HVCMOS technology for high performance

* 3.3 or 5.0V CMOS input logic level

* 20MHz data shift clock frequency

* Very low quiescent power dissipation (-10µA)

* Low parasitic capacitance

* DC to 50MHz small

HV2221 General Description

The Supertex HV2221 is a low charge injection, 8-channel, unipolar, negative high voltage, analog switch integrated circuit (IC) intended for use in applications requiring high voltage switching controlled by low voltage control signals, such as NDT ultrasound flaw detection, medical ultrasound imag.

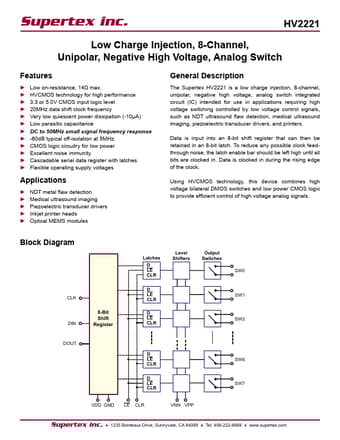

HV2221 Datasheet (373.08 KB)

Preview of HV2221 PDF

Datasheet Details

Part number:

HV2221

Manufacturer:

Supertex

File Size:

373.08 KB

Description:

Analog switch.
