HV2216 Datasheet, Switch, Supertex

HV2216 Features

  • Switch HVCMOS® technology for high performance Very low quiescent power dissipation
      – 10µA Output On-resistance typically 22 ohms Low parasitic capacitances DC to 10MHz analog

PDF File Details

Part number:

HV2216

Manufacturer:

Supertex

File Size:

50.00kb

Download:

📄 Datasheet

Description:

8-channel high voltage analog switch. Not recommended for new designs. Please use HV20220 for all new designs. This device is an 8-channel high-voltage analog switch integ

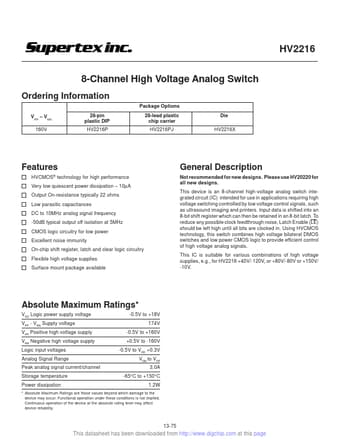

Datasheet Preview: HV2216 📥 Download PDF (50.00kb)
Page 2 of HV2216 Page 3 of HV2216

HV2216 Application

  • Applications requiring high voltage switching controlled by low voltage control signals, such as ultrasound imaging and printers. Input data is shif
