0105-50 - RF Transistor

Datasheet Summary

Description

The 0105-50 is a double input matched COMMON EMITTER broadband transistor specifically intended for use in the 100-500 MHz frequency band.

It may be operated in Class AB or C.

Gold metallization and silicon diffused resistors ensure ruggedness and high reliability.

GHz TECHNOLOGY

📥 Download Datasheet

Datasheet Details

Part number	0105-50
Manufacturer	GHz TECHNOLOGY
File Size	145.38 KB
Description	RF Transistor
Datasheet	0105-50 Datasheet

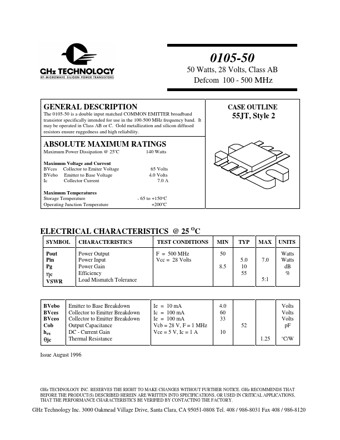

Additional preview pages of the 0105-50 datasheet.

📁 Similar Datasheet

010NE2LS - MOSFET (Infineon)

Other Datasheets by GHz TECHNOLOGY

Full PDF Text Transcription

Click to expand full text

0105-50 50 Watts, 28 Volts, Class AB Defcom 100 - 500 MHz GENERAL DESCRIPTION The 0105-50 is a double input matched COMMON EMITTER broadband transistor specifically intended for use in the 100-500 MHz frequency band. It may be operated in Class AB or C. Gold metallization and silicon diffused resistors ensure ruggedness and high reliability. ABSOLUTE MAXIMUM RATINGS Maximum Power Dissipation @ 25oC 140 Watts Maximum Voltage and Current BVces Collector to Emiter Voltage BVebo Emitter to Base Voltage Ic Collector Current 65 Volts 4.0 Volts 7.
