2SA1576A - PNP Silicon Transistor

2SA1576A Description

Production specification PNP Silicon Epitaxial Planar Transistor .

2SA1576A Features

* Power dissipation. (PC=200mW)
* Excellent HFE Linearity.

2SA1576A Applications

* General purpose application.
* Switching and amplification. ORDERING INFORMATION Type No. Marking 2SA1576A FQ/FR/FS SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -60 VCEO Collector-Emitter V

📥 Download Datasheet

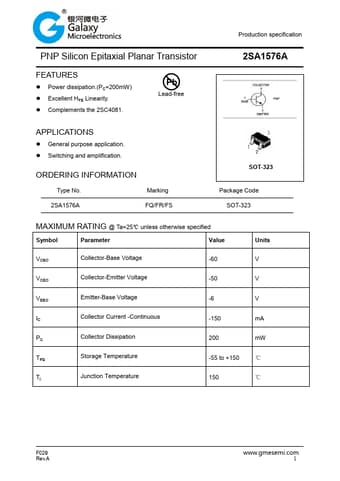

Preview of 2SA1576A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1576A
Manufacturer
GME
File Size
114.58 KB
Datasheet
2SA1576A-GME.pdf
Description
PNP Silicon Transistor
