Part number:
2SA1012
Manufacturer:
GME
File Size:
227.70 KB
Description:
Pnp epitaxial silicon transistor.
* Low Collector Saturation Voltage. VCE(sat)=-0.4V(Max.)at IC=-3A
* Complements the 2SC2562. Pb Lead-free

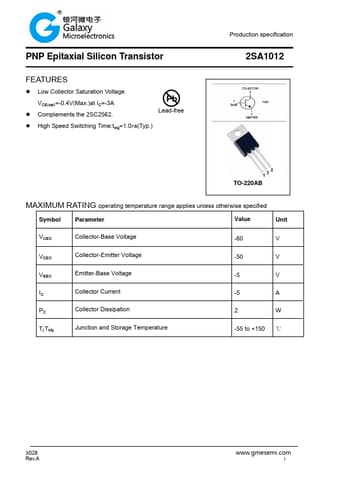

* High Speed Switching Time:tstg=1.0µs(Typ.) Production specification 2SA1012 TO-220AB MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Par
2SA1012
GME
227.70 KB
Pnp epitaxial silicon transistor.
