2SA1013 - Silicon PNP Transistor

Toshiba Semiconductor

Datasheet Details

Part number	2SA1013
Manufacturer	Toshiba Semiconductor
File Size	159.90 KB
Description	Silicon PNP Transistor
Datasheet	2SA1013 Datasheet
Additional preview pages of the 2SA1013 datasheet.

📁 Similar Datasheet

2SA1013 - PNP Transistor (INCHANGE)
2SA1013 - PNP Transistors (Kexin)
2SA1013 - PNP Silicon Transistor (SEMTECH)
2SA1013 - PNP Transistor (Secos)
2SA1013 - PNP Transistor (UTC)
2SA1013-O - PNP Transistor (MCC)
2SA1013-R - PNP Transistor (MCC)
2SA1013-Y - PNP Transistor (MCC)
2SA1013T - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
2SA101 - Ge PNP Drift Transistor (ETC)

Other Datasheets by Toshiba Semiconductor

2SA1012 - TRANSISITOR
2SA1015 - Silicon NPN TRANSISTOR
2SA1015L - Silicon NPN TRANSISTOR
2SA1020 - PNP Transistor
2SA1048 - Silicon PNP Epitaxial Type Transistor
2SA1048L - TRANSISTOR
2SA1049 - Silicon PNP Epitaxial Type Transistor
2SA1091 - TRANSISTOR

Full PDF Text Transcription

Click to expand full text

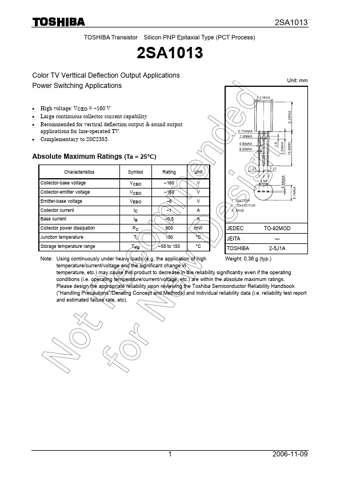

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1013 Color TV Verttical Deflection Output Applications Power Switching Applications 2SA1013 Unit: mm • High voltage: VCEO = −160 V • Large continuous collector current capability • Recommended for vertical deflection output & sound output applications for line-operated TV. • Complementary to 2SC2383. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range VCBO VCEO VEBO IC IB PC Tj Tstg −160 V −160 V −6 V −1 A −0.
