2SA1162 - Silicon Epitaxial Planar Transistor

2SA1162 Description

Production specification Silicon Epitaxial Planar Transistor .

2SA1162 Features

* Excellent hFE linearity.
* Commplementary to 2SC2712.
* High voltage and high current.

2SA1162 Applications

* General purpose application. ORDERING INFORMATION Type No. Marking 2SA1162 SO/SY/SG SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -50 VCEO VEBO Collector-Emitter Voltage Emitter-Base Voltage -50

📥 Download Datasheet

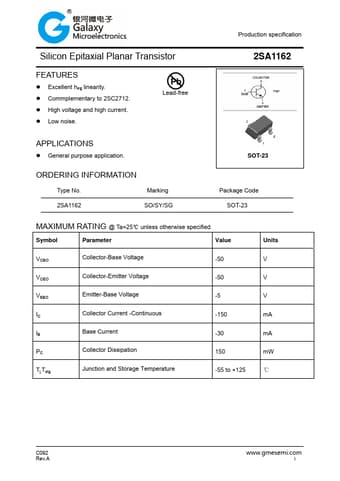

Preview of 2SA1162 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1162
Manufacturer
GME
File Size
280.35 KB
Datasheet
2SA1162-GME.pdf
Description
Silicon Epitaxial Planar Transistor
