2SA1164 Datasheet - Toshiba

2SA1164 SILICON PNP TRANSISTOR

2SA1164 ) ) ) SILICON PNP EPITAXIAL TYPE (PCT PROCESS) HIGH FREQUENCY AMPLIFIER APPLICATIONS. LOW FREQUENCY AMPLIFIER APPLICATIONS. HIGH SPEED SWITCHING APPLICATIONS. Unit in mm &1MAX. . High Transition Frequency : f x=400MHz(Typ. . Low VcE(sat) : V CE ( sat )=0. 5V(Max. . Small Collector Output Capacitance : C b=4pF(Max. . High Speed Switching. . Designed for Complementary Use with 2SC2754. MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING UNIT 1.2 7 1.2 7 Collector-Base Vo.

2SA1164-Toshiba.pdf

Preview of 2SA1164 PDF

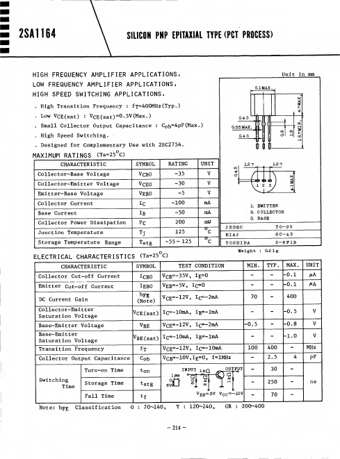

2SA1164 Datasheet Preview Page 2

Datasheet Details

Part number:

2SA1164

Manufacturer:

Toshiba ↗

File Size:

79.09 KB

Description:

Silicon pnp transistor.
