2SA1162 Silicon PNP Transistor

2SA1162 Description

Bipolar Transistors Silicon PNP Epitaxial Type 2SA1162 1.Applications * Low-Frequency Amplifiers * Audio Frequency General Purpose Am.

2SA1162 Features

* (1) AEC-Q101 qualified (Please see the orderable part number list) (2) High voltage: VCEO = -50 V (3) High collector current: IC = -150 mA (max) (4) High hFE: hFE = 70 to 400 (5) Excellent hFE linearity: hFE (IC = -0.1 mA)/hFE (IC = -2 mA) = 0.95 (typ. ) (6) Low noise: NF = 1 dB (typ. ), 10 dB (max) (

2SA1162 Applications

* Low-Frequency Amplifiers

📥 Download Datasheet

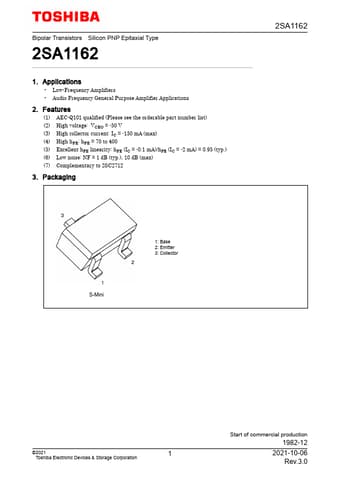

Preview of 2SA1162 PDF
datasheet Preview Page 2 datasheet Preview Page 3
