2SA1163 Datasheet - Toshiba Semiconductor

2SA1163 Silicon PNP Transistor

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1163 Audio Frequency General Purpose Amplifier Applications 2SA1163 Unit: mm AEC-Q101 Qualified (Note1). High voltage: VCEO = 120 V Excellent hFE linearity: hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ.) High hFE: hFE = 200 to 700 Low noise: NF = 1 dB (typ.), 10 dB (max) Complementary to 2SC2713 Small package Note1: For detail information, please contact our sal.

2SA1163_ToshibaSemiconductor.pdf

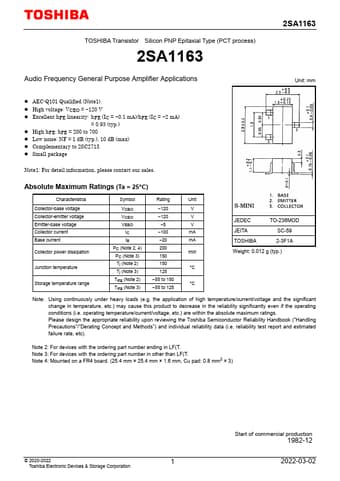

Preview of 2SA1163 PDF
2SA1163 Datasheet Preview Page 2 2SA1163 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1163

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

611.76 KB

Description:

Silicon pnp transistor.
