2SA1102 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-3PN package Complement to type 2SC2577 High current capability High power dissipation APPLICATIONS Audio power amplifer applications DC-DC converters PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol

📥 Download Datasheet

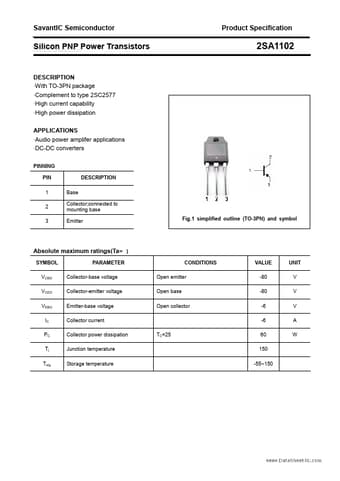

Datasheet preview – 2SA1102

Datasheet Details

Part number 2SA1102
Manufacturer SavantIC
File Size 161.73 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1102 Datasheet
Additional preview pages of the 2SA1102 datasheet.

📁 Similar Datasheet

  • 2SA1102 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1103 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1104 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1105 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1106 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1107 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1108 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1109 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1110 - PNP Transistor (Panasonic Semiconductor)
  • 2SA1110 - POWER TRANSISTOR (Inchange Semiconductor)
Other Datasheets by SavantIC
  • 2SA1103 - SILICON POWER TRANSISTOR
  • 2SA1104 - SILICON POWER TRANSISTOR
  • 2SA1105 - SILICON POWER TRANSISTOR
  • 2SA1106 - SILICON POWER TRANSISTOR
  • 2SA1107 - SILICON POWER TRANSISTOR
  • 2SA1108 - SILICON POWER TRANSISTOR
  • 2SA1109 - SILICON POWER TRANSISTOR
  • 2SA1110 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text
SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SA1102 DESCRIPTION ·With TO-3PN package ·Complement to type 2SC2577 ·High current capability ·High power dissipation APPLICATIONS ·Audio power amplifer applications ·DC-DC converters PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE -80 -80 -6 -6 60 150 -55~150 UNIT V V V A W SavantIC Semiconductor www.DataSheet4U.
