2SA1103

SILICON POWER TRANSISTOR

SavantIC

2SA1103 General Description

*With TO-3PN package
*Complement to type 2SC2578
*High current capability
*High power dissipation APPLICATIONS
*Audio power amplifer applications
*DC-DC converters PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol.

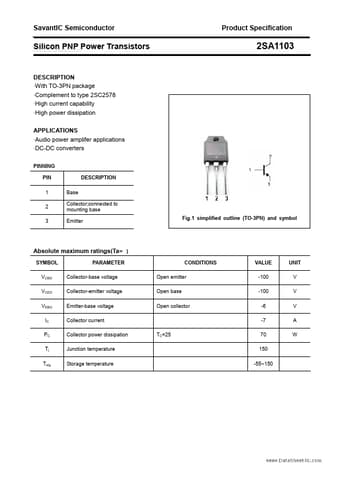

2SA1103 Datasheet (161.74 KB)

2SA1103 Datasheet Preview — Preview of 2SA1103 PDF

Datasheet Details

Part number:

2SA1103

Manufacturer:

SavantIC

File Size:

161.74 KB

Description:

Silicon power transistor.
