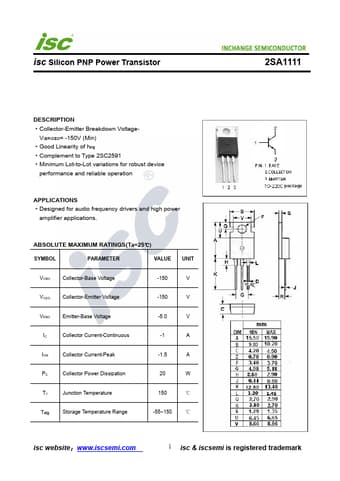

2SA1111 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA1111

Manufacturer:

Inchange Semiconductor

File Size:

220.25kb

Download:

📄 Datasheet

Description:

Power transistor.

Collector-Emitter Breakdown Voltage- V(BR)CEO= -150V (Min)

Good Linearity of hFE

Complement to Type 2SC259

2SA1111 Application

• Applications
• Designed for audio frequency drivers and high power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMET
