2SA1116 - SILICON POWER TRANSISTOR

The 2SA1116 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SA1116 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SA1116
Manufacturer SavantIC
File Size 144.80 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1116_SavantIC.pdf
Additional preview pages of the 2SA1116 datasheet.

2SA1116 Product details

Description

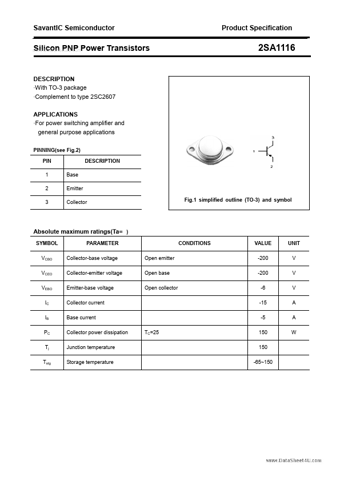

With TO-3 package Complement to type 2SC2607 APPLICATIONS For power switching amplifier and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25
