2SA1112 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SA1112

Manufacturer:

SavantIC

File Size:

153.43kb

Download:

📄 Datasheet

Description:

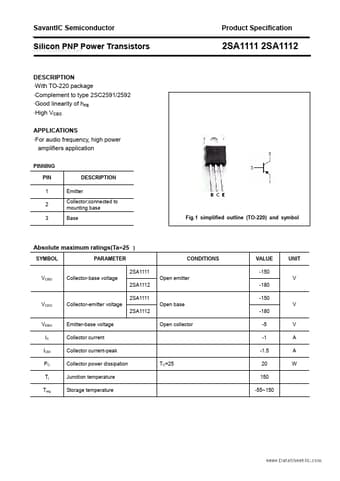

(2sa1111 / 2sa1112) silicon power transistor.

With TO-220 package

Complement to type 2SC2591/2592

Good linearity of hFE

High VCEO APPLICATIONS

2SA1112 Application

• Applications
• For audio frequency, high power amplifiers application PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting b
