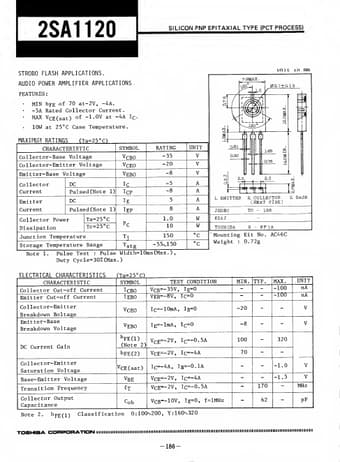

Part number:
2SA1120
Manufacturer:
File Size:
91.41 KB
Description:
Silicon pnp transistor.
* MIN h F E of 70 at-2V, -4A. -5A Rated Collector Current.
* MAX V CE ( sat ) of -1.0V at -4A I c . 10W at 25° C Case Temperature. MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage SYMBOL VcBO VcEO RATING -35 -20 Emitter-Base Voltage VEBO
2SA1120
91.41 KB
Silicon pnp transistor.
