2SA1112 - POWER TRANSISTOR

Product Overview

📥 Download Datasheet

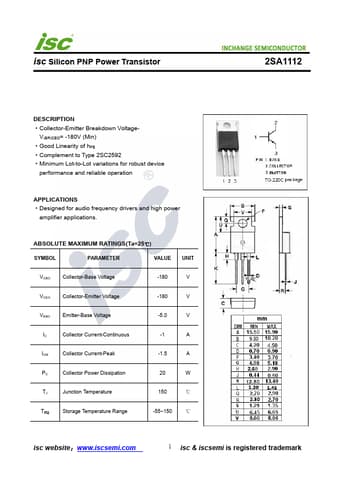

Datasheet preview – 2SA1112

Datasheet Details

Part number 2SA1112
Manufacturer Inchange Semiconductor
File Size 220.31 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1112 Datasheet
Additional preview pages of the 2SA1112 datasheet.

Product details

Description

Collector-Emitter Breakdown Voltage- V(BR)CEO= -180V (Min) Good Linearity of hFE Complement to Type 2SC2592 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio frequency drivers and high power amplifier applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -180 V VCEO Collector-Emitter Voltage -180 V VEBO Emitter-Base Voltage -5.0 V IC Collec
