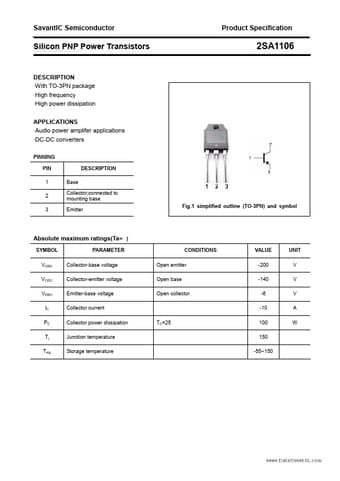

2SA1106 Datasheet, TRANSISTOR, SavantIC

PDF File Details

Part number:

2SA1106

Manufacturer:

SavantIC

File Size:

161.80kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3PN package

High frequency

High power dissipation APPLICATIONS

Audio power amplifer appli

2SA1106 Application

• Applications
• Audio power amplifer applications
• DC-DC converters PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitte
