Part number:
2SA1146
Manufacturer:
File Size:
105.59 KB
Description:
Silicon pnp transistor.

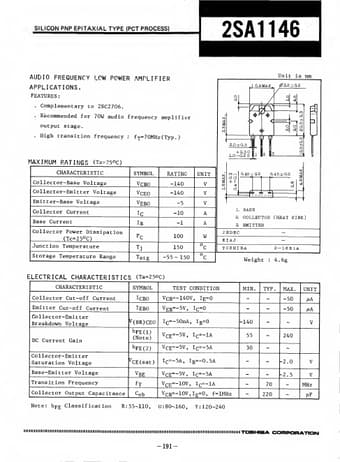

* . Complementary to 2SC2706. .. Recommended for 70W audio frequency amplifier output stage. . High transition frequency : fT=70MHz(Typ. Unit in mm I5.9MAX. 0S.2±a2 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base C
2SA1146
105.59 KB
Silicon pnp transistor.
