2SA1141 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SA1141

Manufacturer:

SavantIC

File Size:

149.79kb

Download:

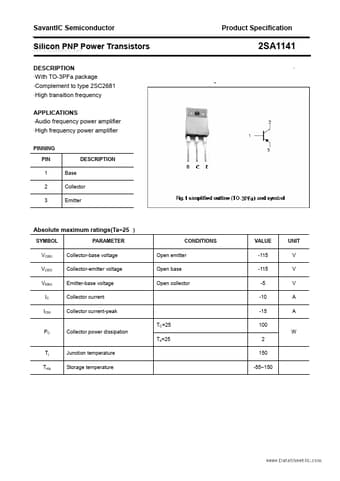

📄 Datasheet

Description:

Silicon power transistor.

With TO-3PFa package

Complement to type 2SC2681

High transition frequency APPLICATIONS

Audio freq

2SA1141 Application

• Applications
• Audio frequency power amplifier
• High frequency power amplifier PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION
