2SA1195 - Silicon PNP Transistor

2SA1195 Description

: SILICON PNP EPITAXIAL TYPE (PCT PROCESS) HIGH VOLTAGE GENERAL AMPLIFIER APPLICATIONS.COLOR TV CLASS B SOUND OUTPUT APPLICATIONS..

2SA1195 Features

* . Large Collector Current and Collector Power Dissipation Capability. (Pc=2.0W at Ta=25°C) . Designed for Complementary Use with 2SC2483. Unit in mm 9.9UAX. 0a2±O.2 , MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current

📥 Download Datasheet

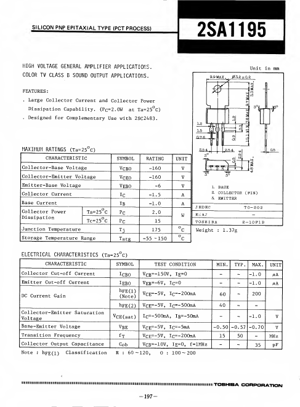

Preview of 2SA1195 PDF
