2SA1193 Datasheet - Hitachi Semiconductor

2SA1193 Silicon PNP Epitaxial Transistor

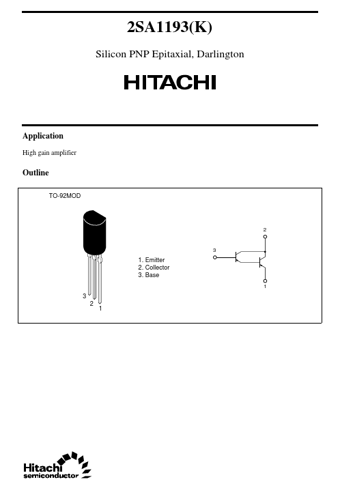

2SA1193(K) Silicon PNP Epitaxial, Darlington Application High gain amplifier Outline TO-92MOD 2 3 1. Emitter 2. Collector 3. Base 1 3 2 1 2SA1193(K) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg Ratings 60 60 7 0.5 1.0.

2SA1193_HitachiSemiconductor.pdf

Preview of 2SA1193 PDF
2SA1193 Datasheet Preview Page 2 2SA1193 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1193

Manufacturer:

Hitachi Semiconductor

File Size:

34.76 KB

Description:

Silicon pnp epitaxial transistor.
