2SA1121 - Silicon PNP Epitaxial Transistor

Hitachi Semiconductor

Datasheet Details

Part number	2SA1121
Manufacturer	Hitachi Semiconductor
File Size	24.20 KB
Description	Silicon PNP Epitaxial Transistor
Datasheet	2SA1121 Datasheet
Additional preview pages of the 2SA1121 datasheet.

📁 Similar Datasheet

2SA1121 - Silicon PNP Transistor (Kexin)
2SA1120 - Silicon PNP Transistor (Toshiba)
2SA1120 - SILICON POWER TRANSISTOR (SavantIC)
2SA1120 - POWER TRANSISTOR (Inchange Semiconductor)
2SA1122 - PNP Transistors (Kexin)
2SA1122 - Silicon PNP Epitaxial Transistor (Renesas)
2SA1123 - Silicon PNP epitaxial planer type Transistor (Panasonic Semiconductor)
2SA1123 - Silicon NPN epitaxial planer type Transistor (Panasonic Semiconductor)
2SA1124 - Silicon PNP epitaxial planer type Transistor (Panasonic Semiconductor)
2SA1124 - Silicon NPN epitaxial planer type Transistor (Panasonic Semiconductor)

Other Datasheets by Hitachi Semiconductor

2SA1122 - Silicon PNP Epitaxial Transistor
2SA1171 - Silicon PNP Epitaxial Transistor
2SA1188 - Silicon PNP Epitaxial Transistor
2SA1189 - Silicon PNP Epitaxial Transistor
2SA1190 - Silicon PNP Epitaxial Transistor
2SA1191 - Silicon PNP Epitaxial Transistor
2SA1193 - Silicon PNP Epitaxial Transistor
2SA1193K - Silicon PNP Epitaxial Transistor

Full PDF Text Transcription

Click to expand full text

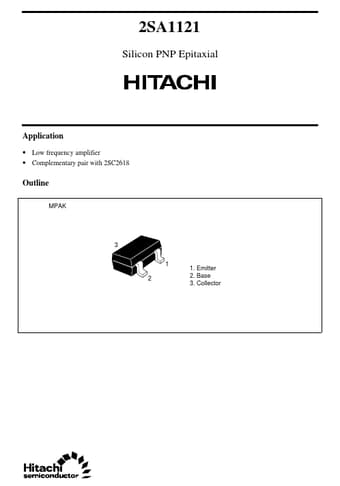

2SA1121 Silicon PNP Epitaxial Application • Low frequency amplifier • Complementary pair with 2SC2618 Outline MPAK 3 1 2 1. Emitter 2. Base 3. Collector 2SA1121 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings –35 –35 –4 –500 150 150 –55 to +150 Unit V V V mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Collector to base breakdown voltage Symbol V(BR)CBO Min –35 –35 –4 — — 60 10 — D SD 160 to 320 Typ — — — — –0.2 — — –0.64 Max — — — –0.5 –0.

Published: Mar 22, 2005 |
