2SA1012-D PNP Transistor

2SA1012-D Description

INCHANGE Semiconductor isc Silicon PNP Power Transistor 2SA1012-D .
Low Collector Saturation Voltage :VCE(sat)= -0. High Switching Speed. “-D”= TO-252 Package. Minimum Lot-to-Lot vari.

2SA1012-D Applications

* Designed for high current switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBO L PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous PC Total Power Dissipation @ TC

📥 Download Datasheet

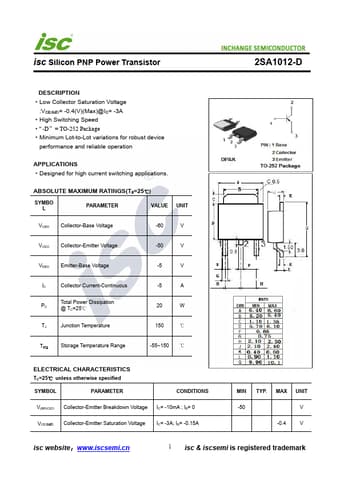

Preview of 2SA1012-D PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA1012-D
Manufacturer
INCHANGE
File Size
191.98 KB
Datasheet
2SA1012-D-INCHANGE.pdf
Description
PNP Transistor
