2SC1815 - Silicon Epitaxial Planar Transistor

GME

📥 Download Datasheet

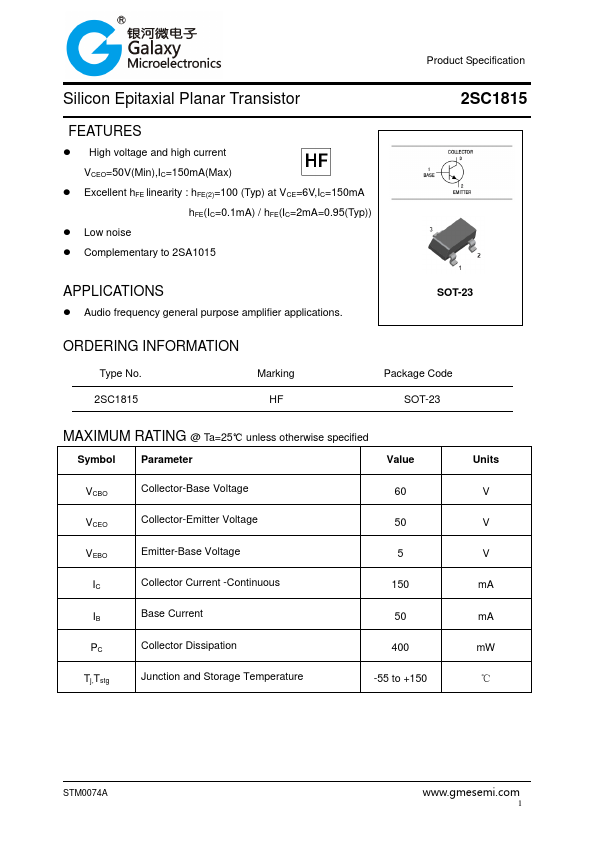

2SC1815 Datasheet Preview — Preview of 2SC1815 PDF

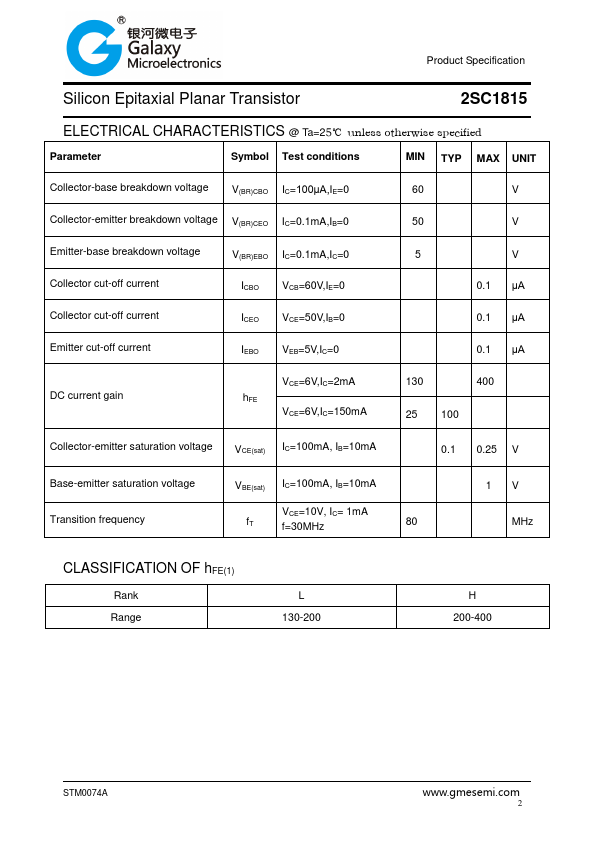

datasheet Preview Page 2

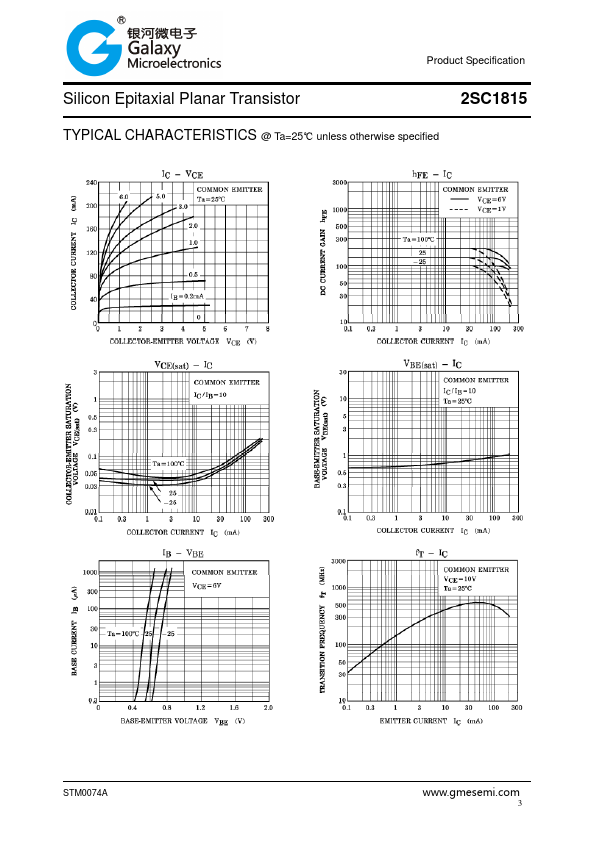

datasheet Preview Page 3

Datasheet Details

Part number	2SC1815
Manufacturer	GME
File Size	297.83 KB
Description	Silicon Epitaxial Planar Transistor
Datasheet	2SC1815-GME.pdf

2SC1815 Product details

Features

High voltage and high current VCEO=50V(Min),IC=150mA(Max).
Excellent hFE linearity : hFE(2)=100 (Typ) at VCE=6V,IC=150mA hFE(IC=0.1mA) / hFE(IC=2mA=0.95(Typ)).
Low noise.
Complementary to 2SA1015 2SC1815.
