2SC2411 - Silicon Transistor

Datasheet Summary

Features

Power dissipation: PCM=200Mw.
High ICM(MAX. ),I CM(MAX. )=0.5mA.
Low VCE(sat)。.
Complements the 2SA1036. Pb Lead-free 2SC2411.

GME

📥 Download Datasheet

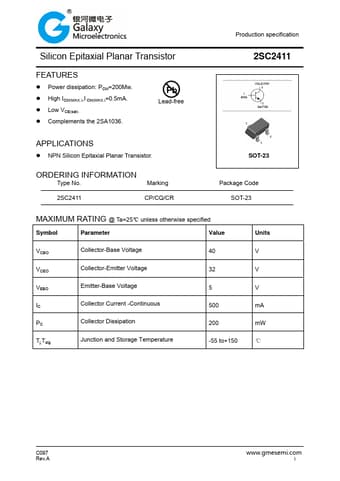

2SC2411 Silicon Transistor by GME - Datasheet Preview — Datasheet preview – 2SC2411

Datasheet Details

Part number	2SC2411
Manufacturer	GME
File Size	231.66 KB
Description	Silicon Transistor
Datasheet	2SC2411 Datasheet
Additional preview pages of the 2SC2411 datasheet.

📁 Similar Datasheet

2SC2411 - NPN Transistors (Kexin)
2SC2411 - GENERAL PURPOSE TRANSISTOR (HOTTECH)
2SC2411 - NPN Transistor (SeCoS)
2SC2411-P - NPN Silicon Transistor (MCC)
2SC2411-Q - NPN Silicon Transistor (MCC)
2SC2411-R - NPN Silicon Transistor (MCC)
2SC2411K - Medium Power Transistor (Rohm)
2SC2411K - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
2SC2411K - Medium Power Transistor (Kexin)
2SC2411K - NPN Transistor (Weitron)

Other Datasheets by GME

2SC2412 - Silicon Epitaxial Planar Transistor
2SC2073 - NPN Triple Didduesd Planar Silicon Transistor
2SC2712 - Silicon NPN Transistor
2SC2714 - Silicon Transistor
2SC2715 - NPN Transistor
2SC2812 - Silicon Epitaxial Planar Transistor
2SC2859 - Silicon Transistor
2SC2873 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

Production specification Silicon Epitaxial Planar Transistor FEATURES  Power dissipation: PCM=200Mw.  High ICM(MAX.),I CM(MAX.)=0.5mA.  Low VCE(sat)。  Complements the 2SA1036. Pb Lead-free 2SC2411 APPLICATIONS  NPN Silicon Epitaxial Planar Transistor. ORDERING INFORMATION Type No. Marking 2SC2411 CP/CQ/CR SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 40 VCEO VEBO IC PC Tj,Tstg Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Dissipation Junction and Storage Temperature 32 5 500 200 -55 to+150 Units V V V mA mW ℃ C097 Rev.A www.gmesemi.

Published: Apr 15, 2018 |
