2SC2714 - Silicon Transistor

2SC2714 Description

Production specification Silicon Epitaxial Planar Transistor .

2SC2714 Features

* Small reverse transfer capacitance: Cre=0.7pF(Typ. )

2SC2714 Applications

* High frequency amplifier applications
* FM,RF,MIX,IF Amplifier applications SOT-23 ORDERING INFORMATION Type No. Marking 2SC2714 QR/QO/QY Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 40 VCEO Collec

📥 Download Datasheet

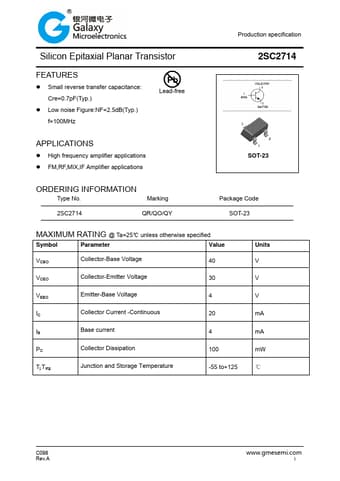

Preview of 2SC2714 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2714
Manufacturer
GME
File Size
197.36 KB
Datasheet
2SC2714-GME.pdf
Description
Silicon Transistor
