2SC2710 - Silicon NPN TRANSISTOR

📥 Download Datasheet

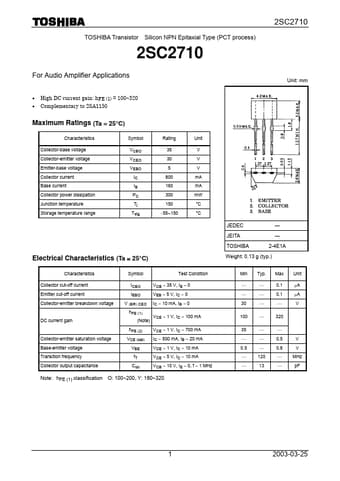

Datasheet preview – 2SC2710

Datasheet Details

Part number 2SC2710
Manufacturer Toshiba Semiconductor
File Size 109.26 KB
Description Silicon NPN TRANSISTOR
Datasheet download datasheet 2SC2710 Datasheet
Additional preview pages of the 2SC2710 datasheet.

📁 Similar Datasheet

  • 2SC2710 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2712 - NPN TRANSISTOR (AiT Semiconductor)
  • 2SC2712 - Silicon NPN Transistor (GME)
  • 2SC2712 - NPN Transistor (INCHANGE)
  • 2SC2712 - AUDIO FREQUENCY AMPLIFIER NPN TRANSISTOR (UTC)
  • 2SC2712 - Silicon NPN Transistors (Weitron Technology)
  • 2SC2712 - Silicon NPN Transistor (Kexin)
  • 2SC2712 - NPN Transistor (SeCoS)
  • 2SC2712 - BIPOLAR TRANSISTORS (Rectron)
  • 2SC2712 - TRANSISTOR (Jin Yu Semiconductor)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SC2710 2SC2710 For Audio Amplifier Applications Unit: mm · High DC current gain: hFE (1) = 100~320 · Complementary to 2SA1150 Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 35 30 5 800 160 300 150 -55~150 Unit V V V mA mA mW °C °C Electrical Characteristics (Ta = 25°C) Characteristics Symbol Test Condition Collector cut-off current Emitter cut-off current Collector-emitter breakdown voltage DC current gain Collector-emitter saturation voltage Base-emitter voltage Transition frequency Collector output
