2SC2712 Silicon NPN Transistor

2SC2712 Description

Bipolar Transistors Silicon NPN Epitaxial Type 2SC2712 1.Applications * Low-Frequency Amplifiers * Audio Frequency General Purpose Am.

2SC2712 Features

* (1) AEC-Q101 qualified (Please see the orderable part number list) (2) High voltage: VCEO = 50 V (3) High collector current: IC = 150 mA (max) (4) High hFE: hFE = 70 to 700 (5) Excellent hFE linearity: hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ. ) (6) Low noise: NF = 1 dB (typ. ), 10 dB (max) (7) C

2SC2712 Applications

* Low-Frequency Amplifiers
* Audio Frequency General Purpose Amplifier Applications

📥 Download Datasheet

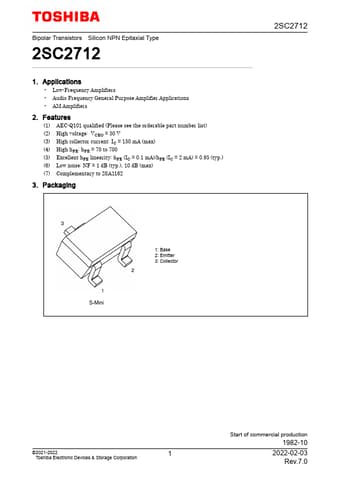

Preview of 2SC2712 PDF
datasheet Preview Page 2 datasheet Preview Page 3
