BL78L09 - Three-Terminal Low Current Positive Voltage Regulators

Product Overview

GME

📥 Download Datasheet

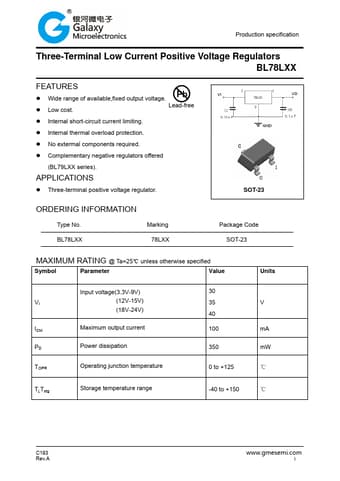

BL78L09 Three-Terminal Low Current Positive Voltage Regulators by GME - Datasheet Preview — Datasheet preview – BL78L09

Datasheet Details

Part number	BL78L09
Manufacturer	GME
File Size	249.64 KB
Description	Three-Terminal Low Current Positive Voltage Regulators
Datasheet	BL78L09 Datasheet
Note	This datasheet PDF includes multiple part numbers: BL78L09, BL78L33. Please refer to the document for exact specifications by model.
Additional preview pages of the BL78L09 datasheet.

Product details

Features

Wide range of available,fixed output voltage. Pb.
Low cost. Lead-free.
Internal short-circuit current limiting.
Internal thermal overload protection.
No extermal components required.
Complementary negative regulators offered (BL79LXX series).
