BL78L12, BL78L33, Three-Terminal Low Current Positive Voltage Regulators

Production specification Three-Terminal Low Current Positive Voltage Regulators BL78LXX .

BL78L33-GME.pdf

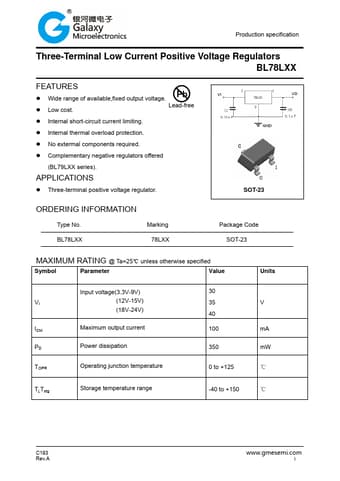

BL78L12 Datasheet Preview — This datasheet PDF includes multiple part numbers: BL78L12, BL78L33. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BL78L12, BL78L33

Manufacturer:

GME

File Size:

249.64 KB

Description:

Three-Terminal Low Current Positive Voltage Regulators

Note:

This datasheet PDF includes multiple part numbers: BL78L12, BL78L33.
Please refer to the document for exact specifications by model.

Features

* Wide range of available,fixed output voltage. Pb
* Low cost. Lead-free
* Internal short-circuit current limiting.
* Internal thermal overload protection.
* No extermal components required.

Applications

* Three-terminal positive voltage regulator. SOT-23 ORDERING INFORMATION Type No. Marking BL78LXX 78LXX Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Units VI ICM PD TOPR Input voltage(3.3V-9V) (12V-15V) (18V-24V) Maximum output curr
