DA204U - Switching Diodes

Datasheet Summary

Features

  • Power dissipation PD=200Mw.
  • Two diode elements are connected in series. Pb Lead-free DA204U.

📥 Download Datasheet

Datasheet preview – DA204U

Datasheet Details

Part number DA204U
Manufacturer GME
File Size 211.22 KB
Description Switching Diodes
Datasheet download datasheet DA204U Datasheet
Additional preview pages of the DA204U datasheet.

📁 Similar Datasheet

  • DA204U - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
  • DA204U - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • DA204U - Switching diode (Rohm)
  • DA204U - SWITCHING DIODE (Transys)
  • DA204U - Switching Diode (MCC)
  • DA204U - Switching Diodes (LGE)
  • DA204U - SWITCHING DIODE (JCET)
  • DA204K - Switching diode Silicon epitaxial planar (Rohm)
  • DA204KFH - Switching Diode (ROHM)
  • DA20-220S05G2N4 - AC/DC Converter (Aipu Electron)
Other Datasheets by GME
  • DA221 - Surface Mount Fast Switching Diode

Full PDF Text Transcription

Click to expand full text

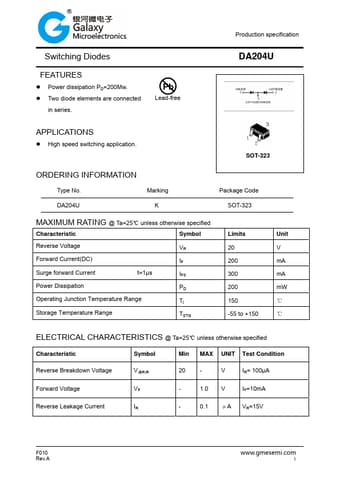

Production specification Switching Diodes FEATURES  Power dissipation PD=200Mw.  Two diode elements are connected in series. Pb Lead-free DA204U APPLICATIONS  High speed switching application. SOT-323 ORDERING INFORMATION Type No. Marking DA204U K Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Reverse Voltage VR Forward Current(DC) IF Surge forward Current t=1μs IFS Power Dissipation PD Operating Junction Temperature Range Tj Storage Temperature Range TSTG Limits 20 200 300 200 150 -55 to +150 Unit V mA mA mW ℃ ℃ ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Characteristic Symbol Min MAX UNIT Test Condition Reverse Breakdown Voltage V(BR)R 20 - V IR= 100μA Forward Voltage VF - 1.
