DTC143TE, DTC114TE Digital Transistor

DTC143TE Description

Production specification Digital Transistor .

DTC143TE Features

* Pb
* Epitaxial planar die construction. Lead-free
* Complementary PNP types available(DTC).
* Built-in biasing resistors,R1only.
* Also available in lead free version.

DTC143TE Applications

* The NPN style digital transistor. ORDERING INFORMATION Type No. Marking DTC114TE DTC143TE DTC144TE 04 03 06 DTCXXXTE SOT-523 Package Code SOT-523 SOT-523 SOT-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCBO Collector-Base Voltage VCEO Collector-Emitter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTC143TE, DTC114TE. Please refer to the document for exact specifications by model.

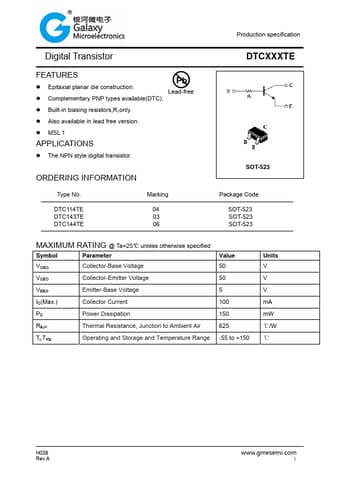

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC143TE, DTC114TE
Manufacturer
GME
File Size
187.45 KB
Datasheet
DTC114TE-GME.pdf
Description
Digital Transistor
Note
This datasheet PDF includes multiple part numbers: DTC143TE, DTC114TE.
Please refer to the document for exact specifications by model.
